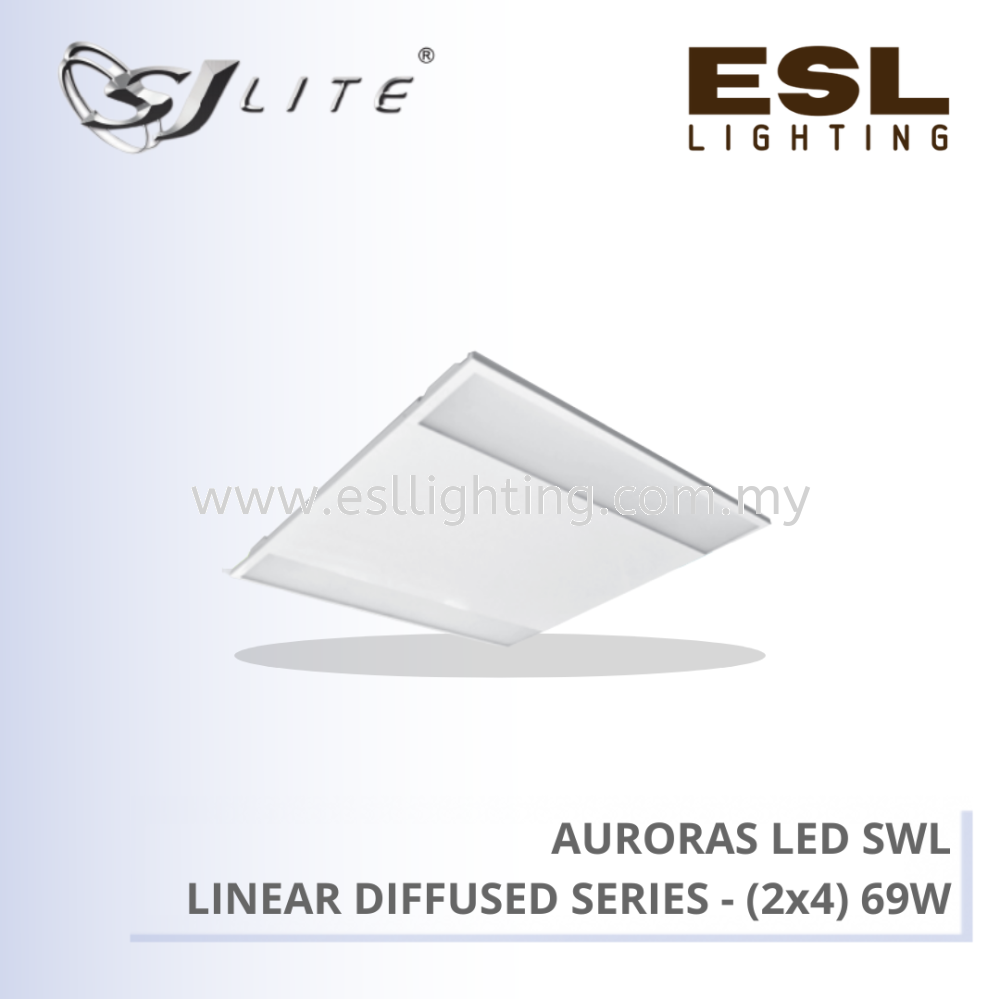

SJLITE AURORAS LED SWL LINEAR DIFFUSED SERIES [SWL D4 69W (2x4)]

• SWL B4 12W (1x2)

• SWL B4 17W (1x2)

• SWL B4 23W (2x2)

• SWL B4 34W (2x2)

• SWL B4 23W (1x4)

• SWL B4 34W (1x4)

• SWL B4 23W (2x4)

• SWL B4 34W (2x4)

• SWL B4 46W (2x4)

• SWL B4 69W (2x4)

Features & Benefits

Designed for recess or surface mounting ceiling. LED double row diffuser panel lights, highlighting the use of a new generation of low power and high power LED as light source. Higher transmittance with special diffusion additives. Greater diffusion with better lamp hiding. Glare control UGR <19.

Optics

• Diffuser Material: Acrylic

• ​Diffuser Pattern: Frosted

Applications

Ideal for offices, retail store, supermarkets, schools, hotels, factories, car parks and etc.

Control

*Dimming Option: Fixed Output/Dali/1-10V

Luminaire Product Description

1. Mounting: Recessed

2. ​Housing Material: Cold Roll Sheet

3. ​Power Supply: 240V 50Hz

4. Operating Temperature: 45°C

5. ​Power Factor: 0.95

6. ​Total Harmonic Distortion: ≤20%

7. Ingress Protection: IP20

8. Insulation Classification: Class I

9.  Life Cycle: 30,000 hrs / 50,000 hrs

10. Model No: SWL D4 69W (2x4)

11. Dimension (LxWxH) (mm): 1195x595x40

12. ​Driver Model: CertaDrive

13. Light Source Model: CertaFlux

14. Module Dimension (WxL) (mm): 20x560

15. Nominal Lumen Per Modules (lm) @ 25°C: 2200

16. CRI & CCT: 830/840/865

17. Nominal Power (W): 69

18. Nominal System Lumen Output (lm): 7750

19. Nominal System Efficacy (lm/W): 112
