Specifications
Details

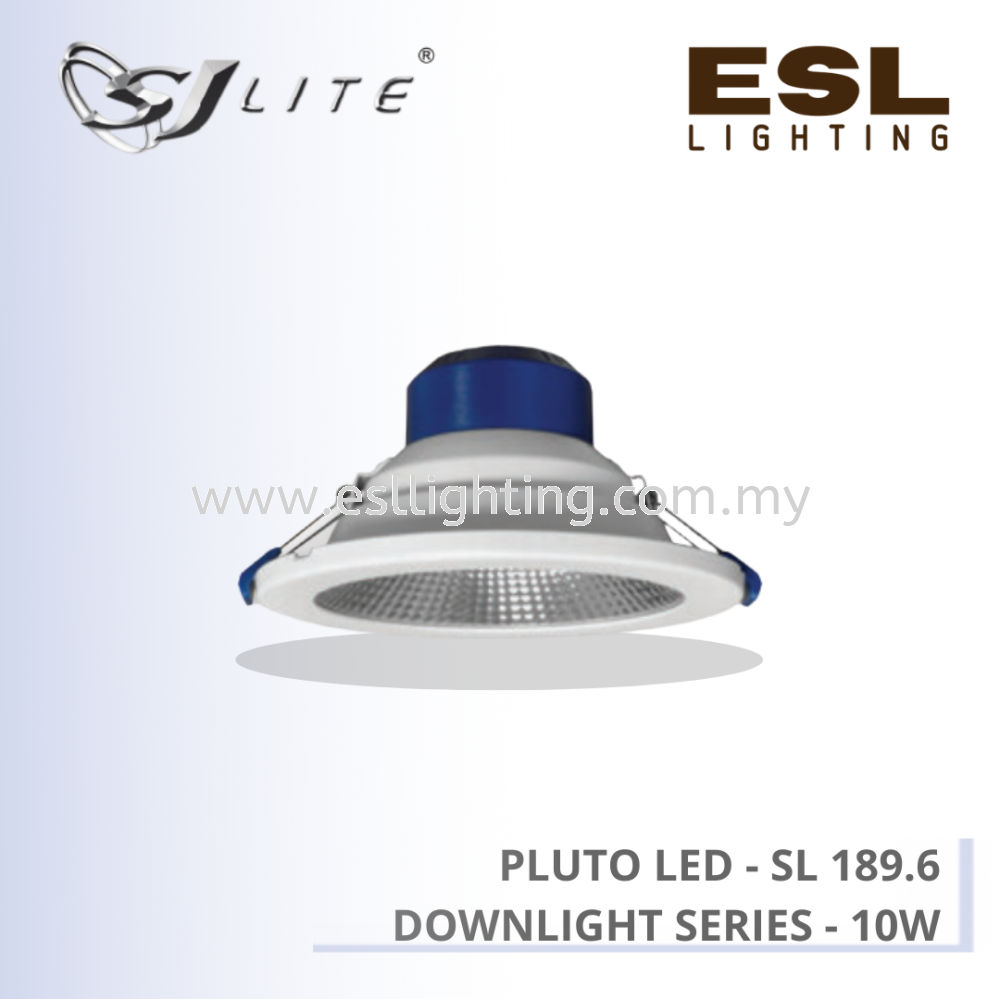

SJLITE PLUTO LED DOWNLIGHT SERIES SL189 [SL 189.6 10W]

  • SL 189.4 10W

  • SL 189.6 10W

  • SL 189.6 20W

  • SL 189.8 20W

  • SL 189.8 30W


Features & Benefits

Designed for recess mounting ceiling with better glare control. Tool free assembly, simple as push and rotate.


Optics

  • Reflector Material: Aluminium Reflector

  • Beam Angle: 60°/90°


Applications

Ideal for commercial building, offices, conference room, classrooms, shops & etc.


Control

*Dimming Option: Fixed Output


Luminaire Product Description

  1. Mounting: Recessed

  2. ​Housing Material: Aluminium

  3. ​Power Supply: 220-240V 50/60Hz

  4. Operating Temperature: -20°...+40°C

  5. ​Power Factor: 0.90

  6. ​Total Harmonic Distortion: ≤20%

  7. Ingress Protection: IP20

  8. Insulation Classification: Class II

  9.  Life Cycle: 50,000 hrs

  10. Model No: SL 189.6 10W

  11. Dimension (ØxH) (mm): 170x115

  12. ​Driver Model: Tridonic DLA ECG

  13. Light Source Model: Tridonic DLA

  14. CRI & CCT: 830/840/865

  15. Nominal Power (W): 10

  16. Nominal System Lumen Output (lm): 1120

  17. Nominal System Efficacy (lm/W): 112
