Details

---

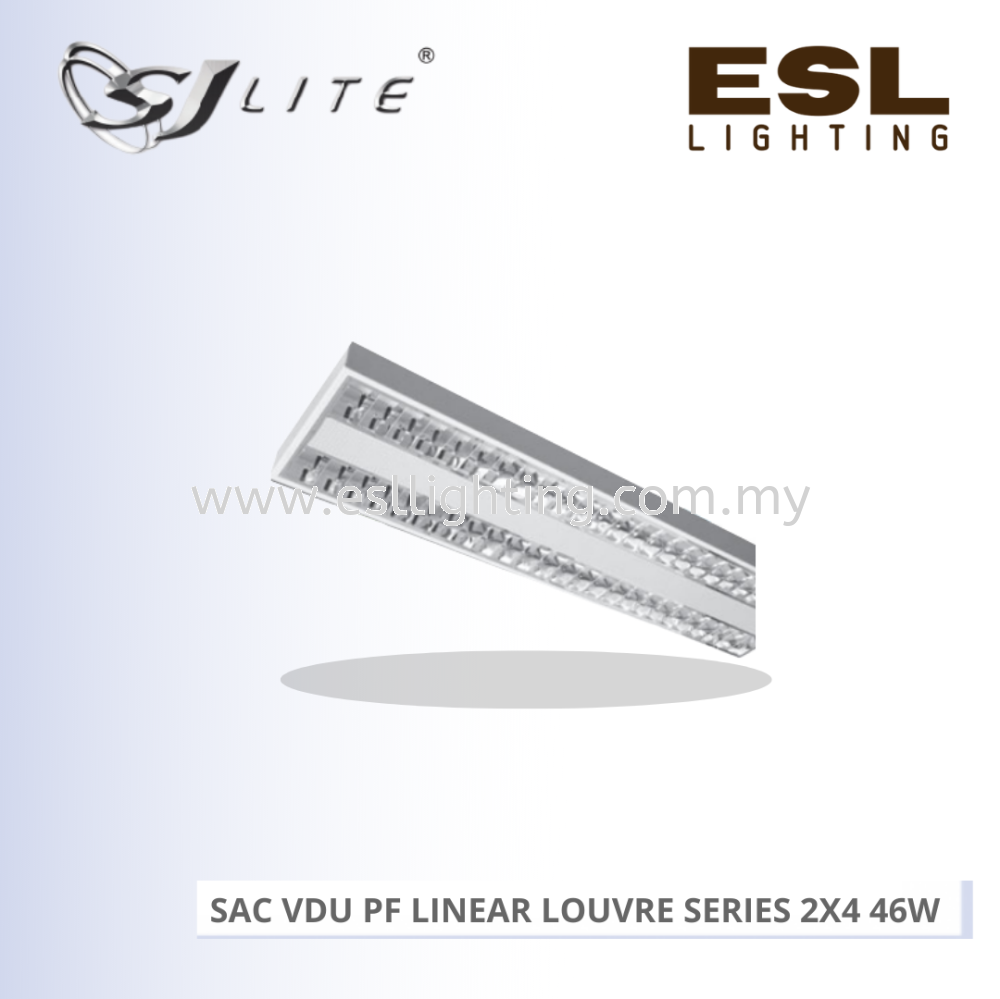

SJLITE METEOR LED SAC VDU PF LINEAR LOUVRE SERIES 46W SAC D4 MM VDU PF (2X4)

• SAC B4 MM VDU PF 23W (2X2)

• SAC B4 MM VDU PF 34W (2X2)

• SAC D4 MM VDU PF 46W (1X4)

• SAC D4 MM VDU PF 69W (1X4)

• SAC D4 MM VDU PF 46W (2X4)

• SAC D4 MM VDU PF 69W (2X4)

Featured

1. Designed for direct mount ceiling.

2. LED double row louvre fitting highlighting the use of a new generation of low power and high power LED as light source.

3. Good control of luminous with design cut off angle of 60°.

4. Glare control UGR <16.

Application

1. Ideal for offices, retail stores, supermarkets, schools, hotels, factories, car parks and other indoor place to use.

Electrical Data

1. Input Voltage (V) : 240V 50Hz

2. Power Factor (λ): 0.95

Product Data

1. Mounting: Surface/Recessed

2. Housing Material: Cold Roll Steel

3. Coating: Epoxy Polyester Powder

4. Light Source: T8 LED Tube

5. Operating Temperature: 45°C

6. Total Harmonic Distortion: <20%

7. Ingress Protection: IP20

8. Insulation Classification: Class I

9. Life Cycle: 30,000hrs/50,000hrs

10. Driver Model: CertaDrive

11. Light Source Model: CertaFlux

12. Module Dimension: 20mm x 560mm

13. CRI & CCT: 830/840/865

14. Number of Module: D (4 modules)

15. Brand of Component: 4-Philips

16. Nominal Power: 46W

17. Nominal Lumen Per Modules (lm) @ 25°C: 1550lm

18. Nominal System Lumen Output (lm): 3600lm

19. Nominal System Efficacy (lm/W): 78lm/W

20. Dimension (mm): 1195mm x 595mm x 88mm

​

Optics

1. Diffuser Material: Polycarbonate

2. Diffuser Pattern: Frosted U Shape

3. Louvre Material: High quality anodised aluminium

4. Louvre Type: Specular

Control

1. Dimming Option: Fixed Output/Dali/1-10V


PHOTOMETRIC

TM5 UTILIZATION FACTORS
​


DIMENSION
