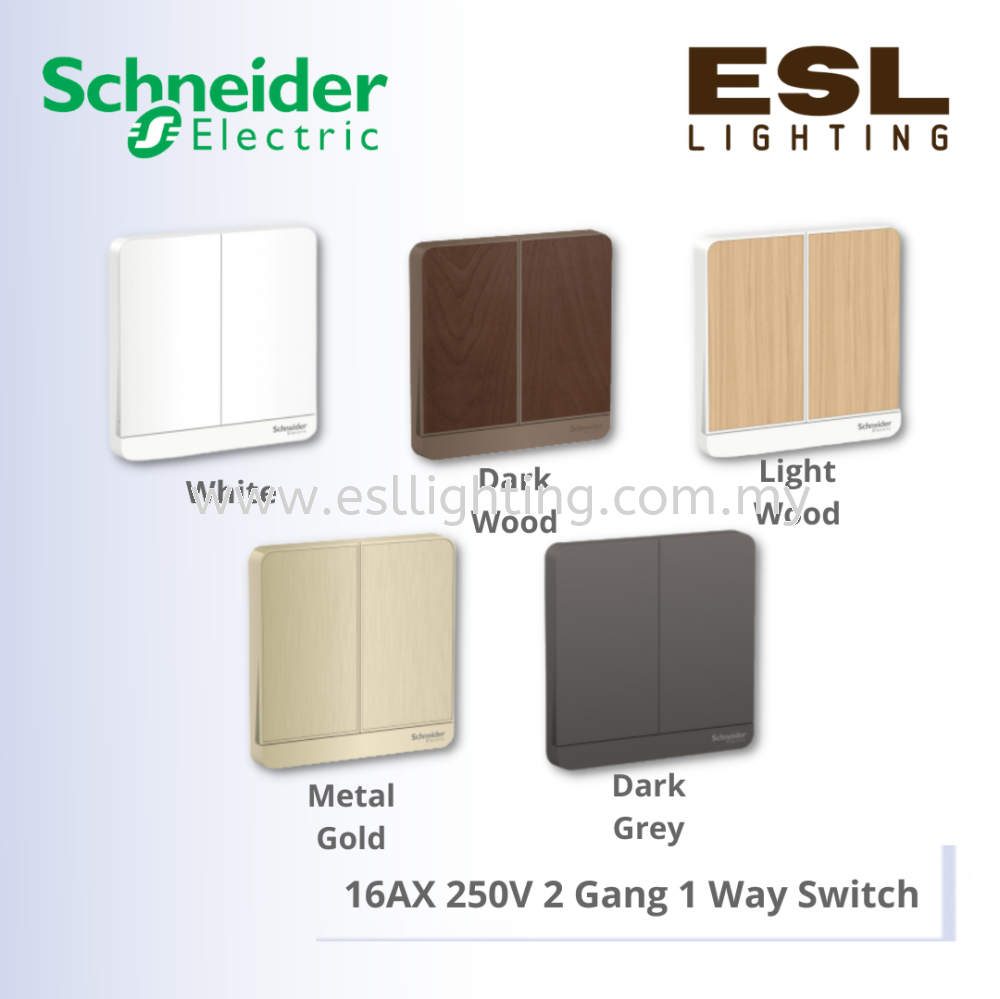

SCHNEIDER AvatarOn 16AX 250V 2 Gang 1 Way Switch (White/ Dark Wood/ Light Wood/ Metal Hairline/ Dark Grey) E8332L1_WE_G11 E8332L1_WD_G11 E8332L1_LW_G11 E8332L1_GH_G11 E8332L1_DG_G11

• E8332L1_WE_G11

• E8332L1_WD_G11

• E8332L1_LW_G11

• E8332L1_GH_G11

• E8332L1_DG_G11

Main

• Product or component type : Switch
• Device application : Control
• Load type : Inductive / Incandescent lamp / Resistive / Fluorescent lamp
• Colour tint : White / Dark Wood / Light Wood / Metal Hairline / Dark Grey

Complementary

• Device presentation : Complete product
• Rated current : 16 AX at 250 V AC 50/60 Hz
• Switch function : 1-pole 1-way
• Number of gangs : 2 gangs
• Number of rocker : 2
• Clamping connection capacity : 3 x 2.5 mm² for solid cable(s) / 3 x 2.5 mm² for stranded cable(s) / 4 x 1.5 mm² for solid cable(s) / 4 x 1.5 mm² for stranded cable(s)
• Connections - terminals : Brass terminal
• Material : Polycarbonate: grid plate / Polycarbonate: base / Polycarbonate: dolly / Polycarbonate: frame / Polycarbonate + GF 20 %: actuator
• Device mounting : Surface / Flush
• Width : 86 Mm
• Height : 86 Mm
• Depth : 34.2 Mm

Environment

• IP degree of protection : IP20
• Maximum ambient air temperature for operation : 45 °C
• Operating altitude : 2000 m
• Relative humidity : 0…95 %
• Environmental characteristic : UV resistant
• Standards : MS IEC 60669-1 / IEC 60669-1 / BS EN 60669-1 / SS 227-1
