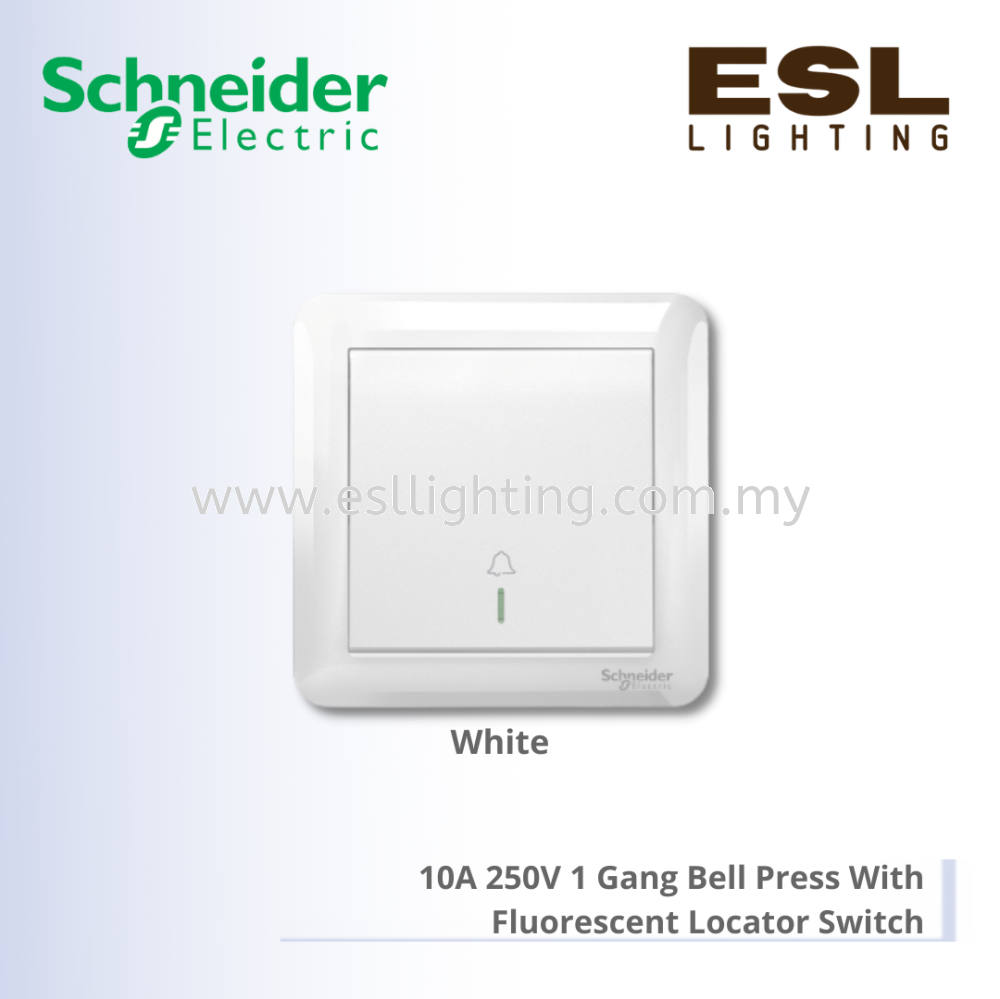

SCHNEIDER Affle Plus 10A 250V 1 Gang Bell Press With Fluorescent Locator Switch - A3G31BBPB_WE_G11

SCHNEIDER Affle Plus 10A 250V 1 Gang Bell Press With Fluorescent Locator Switch - A3G31BBPB_WE_G11

Category: AFFLE PLUS SERIES

Specifications
Details

SCHNEIDER Affle Plus 10A 250V 1 Gang Bell Press With Fluorescent Locator Switch (WHITE) A3G31BBPB_WE_G11

  • A3G31BBPB_WE_G11

Main
  • Range : Affle Plus
  • Product or component type : Switch
  • Device application : Bell switch
  • Load type : Bell chime / Other load
  • Colour tint : White

Complementary
  • Device mounting : Flush
  • Switch function : Bell push switch
  • Cable cross section : 4 mm² stranded cable / 2.5 mm² solid cable / 2.5 mm² stranded cable / 2 x 4 mm² solid cable for AC
  • Rated current : 10 A at 250 V AC
  • Number of gangs : 1 gang
  • Material : Polycarbonate: grid plate / Polycarbonate: base / Polycarbonate: dolly / Polycarbonate: surround / Polycarbonate: actuator
  • Connections - terminals : Brass terminal / Screw terminal
  • Embedding depth : 24.9 mm
  • Width : 86 mm
  • Height : 86 mm
  • Depth : 35.6 mm

Environment
  • Maximum ambient air temperature for operation : 35 °C
  • Relative humidity : 0…95 %
  • Operating altitude : 5000 m
  • Product certifications : IEC
  • Standards : BS EN 60669-1 / MS IEC 60669-1
