Details

---

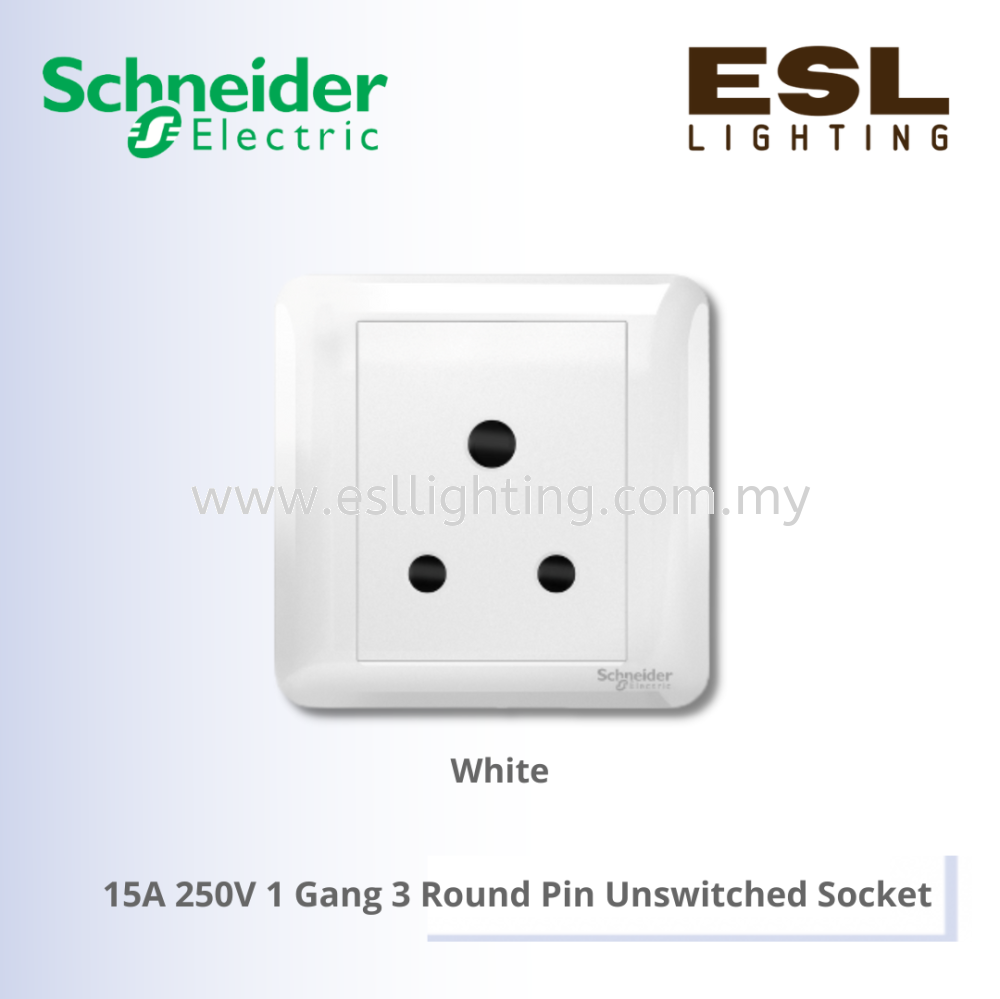

SCHNEIDER Affle Plus 15A 250V 1 Gang 3 Round Pin Unswitched Socket  (WHITE) A3G426_15_WE_G11

• A3G426_15_WE_G11

Main

• Range : Affle Plus
• Product or component type : Socket-outlet
• Socket additional information : Shuttered
• Outlet poles configuration : 3P BS 1363
• Load type : Resistive
• Colour tint : White

Complementary

• Device mounting : Flush
• Clamping connection capacity : 1 x 4...2 x 4 mm² for solid cable(s) / 1 x 4...2 x 4 mm² for stranded cable(s) / 1 x 2.5...2 x 2.5 mm² for solid cable(s) / 1 x 2.5...2 x 2.5 mm² for stranded cable(s)
• Rated current : 15 A at 250 V AC 50 Hz
• Number of gangs : 1 gang
• Material : Polycarbonate grid plate / Polycarbonate surround
• Connections - terminals : Folded terminal
• Embedding depth : 24 mm
• Width : 86 mm
• Height : 86 mm
• Depth : 32 mm

Environment

• Ambient air temperature for operation : 35 °C
• Ambient air temperature for storage : -5…45 °C
• Relative humidity : 0…95 %
• Environmental characteristic : UV resistant
• Operating altitude : 5000 m
• IP degree of protection : IP20
• Standards : BS 546 / MS 1577
• Product certifications : SIRIM
