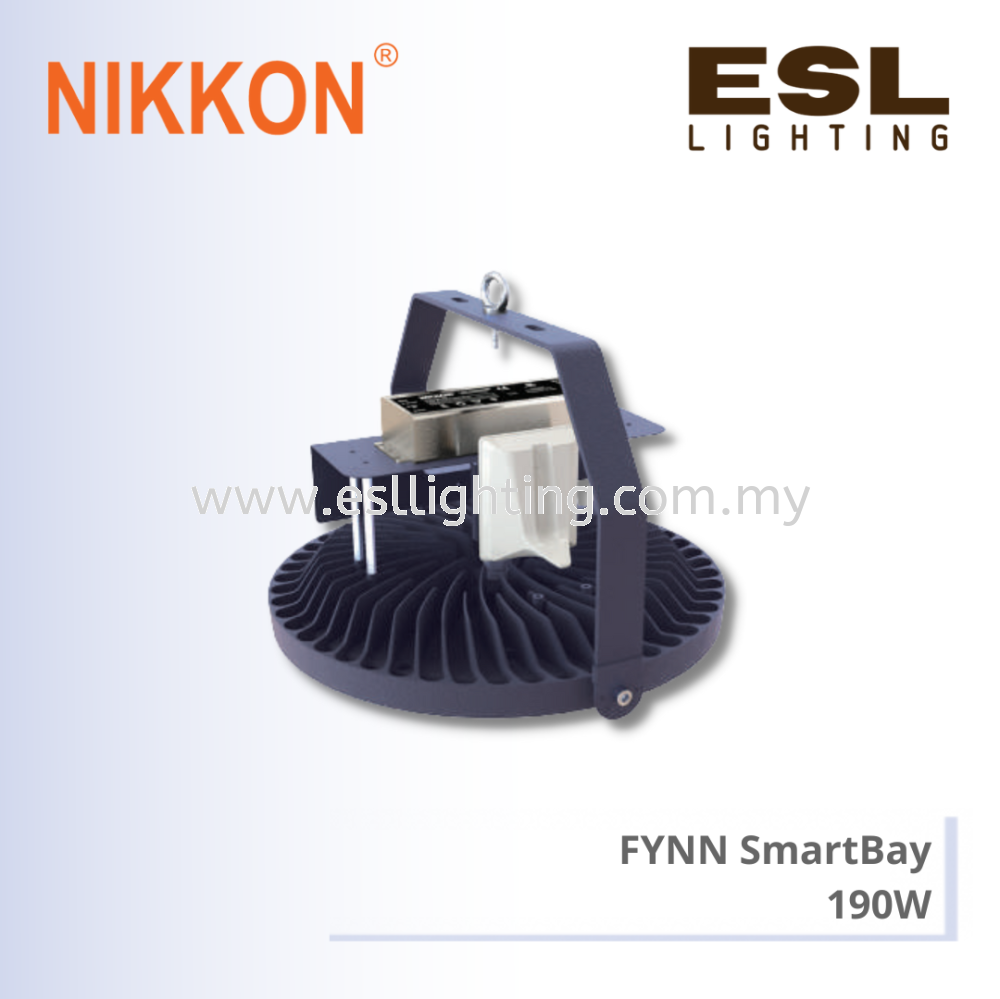

NIKKON FYNN SmartBay 190W

Luminaire Technical Data

• System Power : 190W
• Fitting Material : Non-Corrosive Die-Cast Aluminium
• Fitting Color : Dark Gray, Akzo Nobel RAL7016
• Optical Cover : 95% Transparency Clear Tempered Glass
• Ingress Protection : IP20 / IP66 (Upon Request)
• Impact Protection : IK08
• Voltage : 220~240 Vac 50 / 60Hz
• Electrical Safety Class : Class 1
• Operating Temperature : -30~+45°C
• Installation : Hook Mounting Bracket
• Surge Protection : 10KV, 20KA (External)
• Driver : 1-10V Dimming
• Optics : Wide Beam, MB51 or NB19
• Control    : Intelligent Light Control System

LED Module Specifications

• Color Temperature : 3000K Warm White / 4000K Neutral White / 5000K Cool White
• Color Rendering Index (CRI) : <70
• L70 : 100,000 Hrs @ 25°C
• PCB Material : Ceramic (Alumina Substrate)
• PCB Trace : Silver Conductor (Ag)
• SMD Connector : WAGO 2060 Series

Light Control Unit (LCU) Technical Data

• Operating Voltage : 100~305 Vac @ 50 / 60Hz
• Idle Consumption : <1W
• Dimming Interface : 1-10V
• Ingress Protection : IP66
• Analog Input Availability : 0-30V
• Overvoltage, Overload and Thermal Protection
• Short-Circuit and Open-Circuit Protection
• Autonomous Operation Redundancy
• Antenna Integrated
• Metering Embedded
• GPS Embedded

Compliance Standard

• LED : LM80, UL, RoHS
• Driver : CE, EN62493, EN61347, EN50581, EN55015, EN61000, EN61547, EN62384
• Luminaire : EN60598-1, EN60598-2-1, EN62493, EN55015, EN61547, EN61000, EN62471
• LCU : MCMC MTSFB TC T007: 2014, EN55015, EN61547, EN61347-1, EN61347-2

Application

• Warehouse, Multipurpose Halls, Exhibition Halls,Production Areas, Factories
