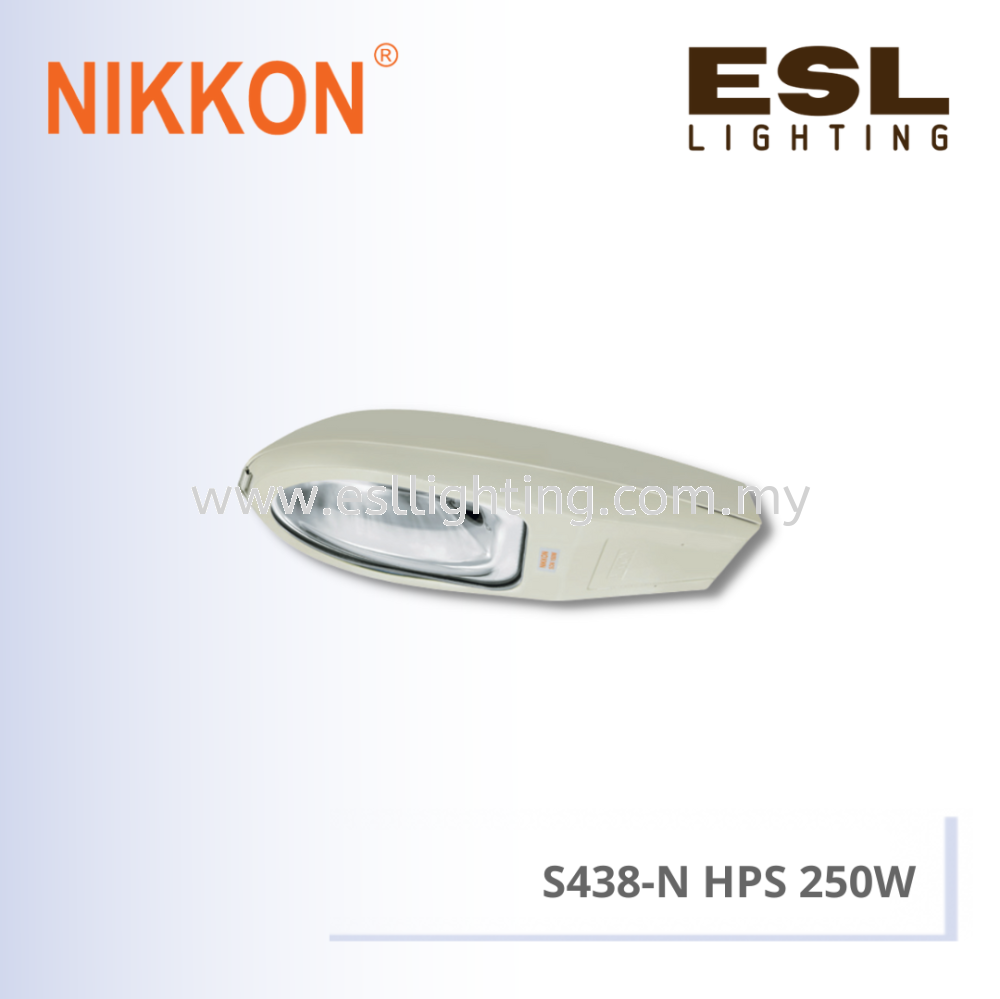

NIKKON S438-N HPS 250W (High Pressure Sodium) - S438-N-S0250

• S438-N-S0250

features

• electrical system : built-in control gear suitable for HID lamps from 150W - 250W
• body frame : high pressure die-cast aluminium with AKzo Nobel Interpon outdoor epoxy powder coating
• glass bowl : thermal resistant tempered glass bowl
• reflector : deep draw high purity anodized aluminium reflector
• spigot : suitable for side entry mounting
• compliance and approvals : sirim general requirement & test IEC60598-1 / sirim particular requirement (street lantern) IEC60598-2-3

technical data

• ingress protection : IP66 (lamp compartment) & IP54 (gear compartment)
• insulation class : class 1
• voltage : 220 - 240 Vac 50 /60Hz
• lamp wattage : 150W - 250W
• holder type : E27 & E40
• maximum weight : 8.8 kg
• designed standards : IEC 60598-2-3
• spigot size : ø42 mm - ø48 mm
