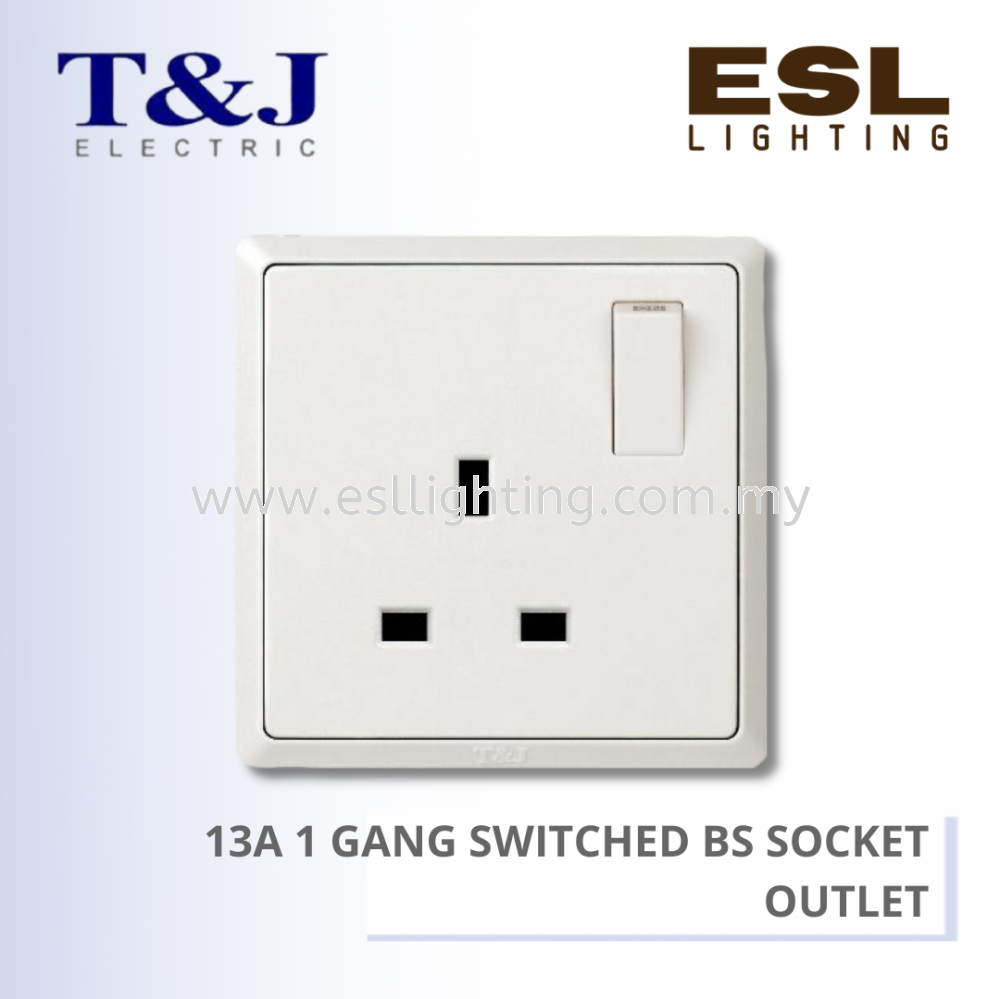

T&J SWITCHES INFINIT SERIES 13A 1 GANG SWITCHED BS SOCKET OUTLET - HC8613S HC8613S-SBL HC8613S-MSB HC8613S-PS7 HC8613S-ST5

T&J SWITCHES INFINIT SERIES 13A 1 GANG SWITCHED BS SOCKET OUTLET - HC8613S HC8613S-SBL HC8613S-MSB HC8613S-PS7 HC8613S-ST5

Category: INFINIT SERIES

Specifications
Details

T&J SWITCHES INFINIT SERIES 13A 1 GANG SWITCHED BS SOCKET OUTLET (White / Matt Black (SBL) / Matt Silver Black (MSB) / Dark Champagne (PS7) / Champagne Grey (ST5)) - HC8613S HC8613S-SBL HC8613S-MSB HC8613S-PS7 HC8613S-ST5

  • HC8613S

  • HC8613S-SBL

  • HC8613S-MSB

  • HC8613S-PS7

  • HC8613S-ST5


TECHNICAL SPECIFICATION
  • Rated Voltage : 250VAC, 50/60Hz
  • Rated Current : 13A
  • Recommended wire size : 2.5mm² - 4mm²
  • Dimensions : 86 x 86 x 10mm (WxHxD)
  • Fix Center : 60.3 mm
  • Fix Screw : M3.5 x 0.6 x 30mm±
  • Mounting box : >35mm depth /  R1150, flush mounting, plastic (80 x 80 x 48.4mm) (WxHxD) / M1247, flush mounting, metal (79 x 73 x 47mm) (WxHxD)
  • Comply to standards : BS 1363-2 / SS 145-2 / MS 589-2
