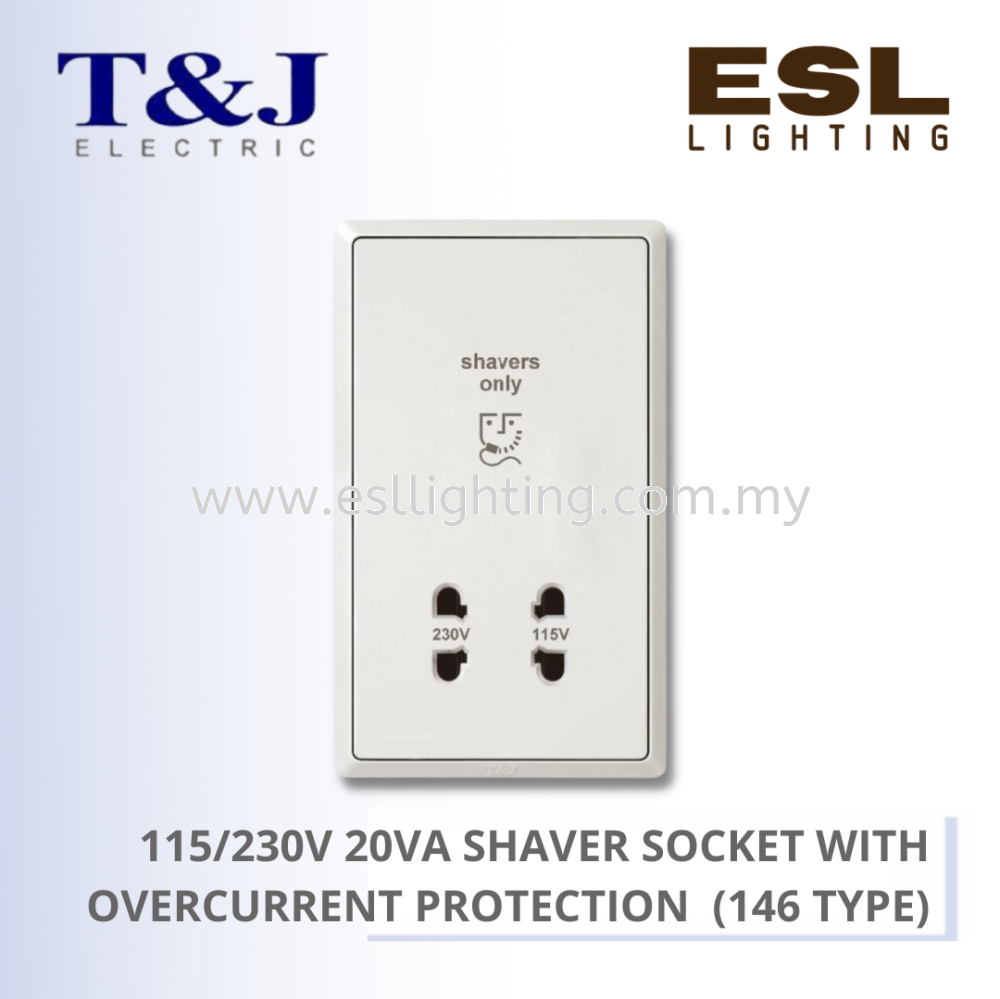

T&J SWITCHES INFINIT SERIES 115/230V 20VA SHAVER SOCKET WITH OVERCURRENT PROTECTION (146 TYPE) (White / Matt Black (SBL) / Matt Silver Black (MSB) / Dark Champagne (PS7) / Champagne Grey (ST5)) - HC8688 HC8688-SBL HC8688-MSB HC8688-PS7 HC8688-ST5

TECHNICAL SPECIFICATION

Rated voltage : Input: 230V AC ± 10%, 50Hz / Output: 115V AC ± 10%, 50Hz / Output: 230V AC ± 10%, 50Hz
Rated max. laod : 20VA
Recommended wire size : 0.5mm² - 1.5mm²
Temperature range : -10°C ~ 45°C
Double-wound isolating transformer
Built-in overload/short-circuit protection
Shaver plug insertion/removal, output power auto on/off
Sockets have interlock shutter to prevetn insertion of two plugs
Dimensions: 86 x 146 x 10mm (WxHxD)
Fix Center: 120.6mm
Fix Screw: M3.5 x 0.6 x 30mm±
Mounting box: > 47mm depth / M1047D, flush mounting, metal (135 x 75 x 47mm) (WxHxD)
Comply to standards : BS EN 61558
